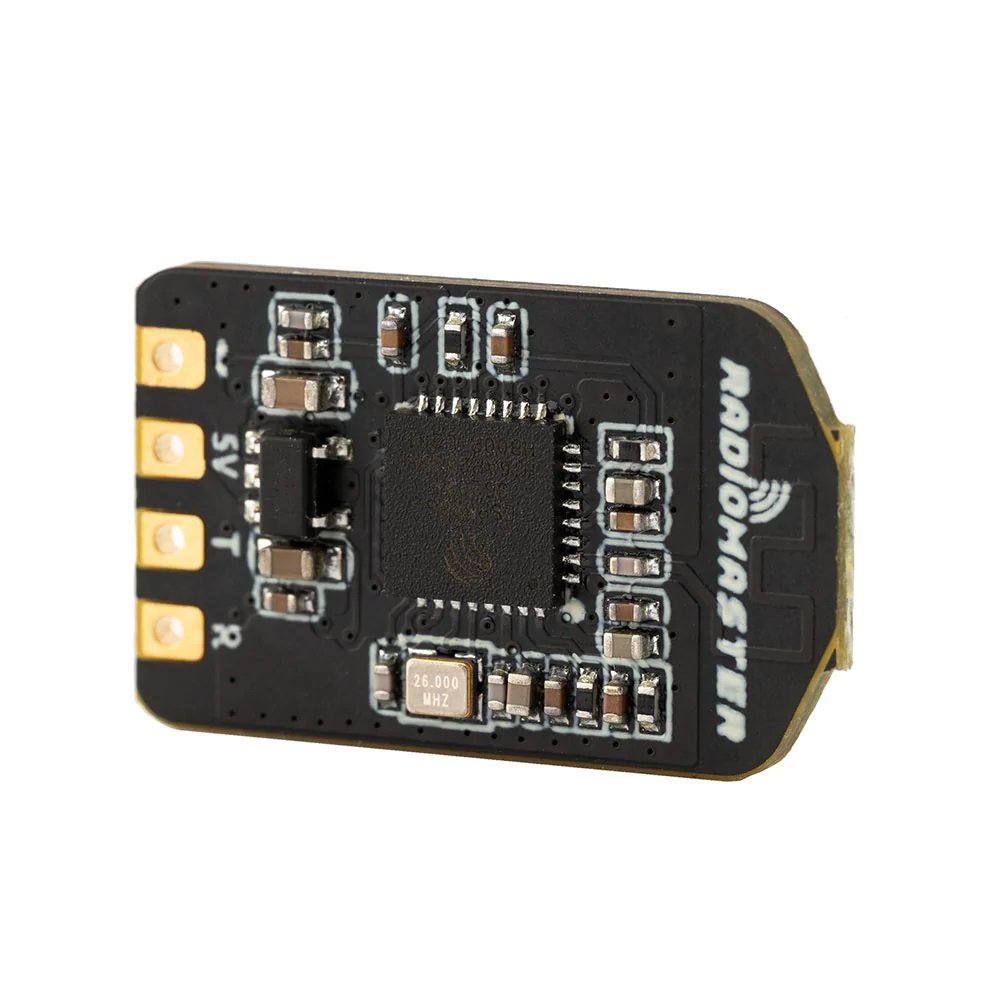

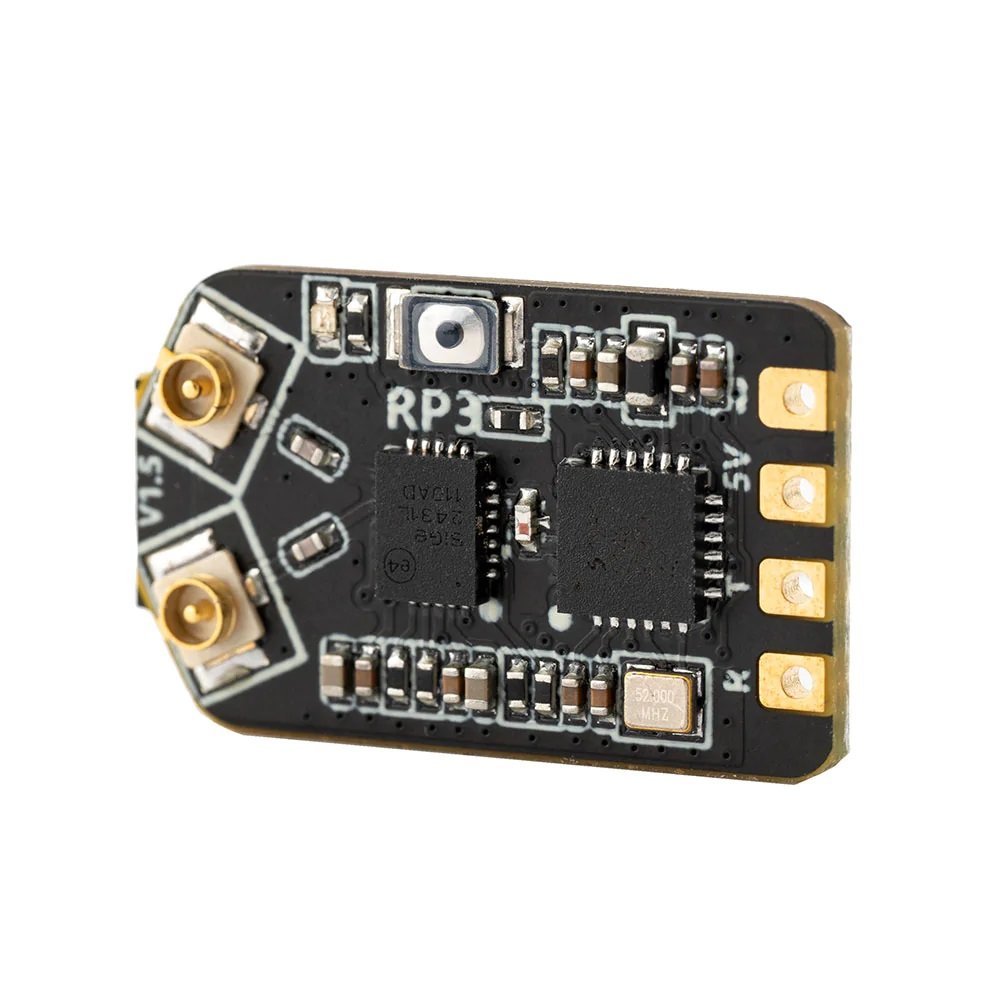

The RP3 ExpressLRS nano receiver features a Skyworks SE2431L providing an LNA for improved receiver performance, a PA providing up to 100mW of telemetry performance and antenna switching for antenna diversity.

Developed around the ESP8285 MCU and SX1280IMLTRT RF Chip, the RP3 offer Lora and FLRC 2.4ghz RF links which offer incredible range and low latency. With Wifi built-in, Firmware updates can be done on your drone without the need to remove the receiver. Binding can be done using a bind phrase meaning no more bind plugs or fiddly button presses while trying to plug in your battery.

RP3 ELRS Nano Receiver

  • Item: RP3 Diversity Receiver
  • Type: ISM
  • MCU: ESP8285
  • RF Chip: SX1280IMLTRT
  • Telemetry RF power: max 100mw
  • Antenna: 65mm 2.4ghz T Antenna x 2
  • Frequency Range: 2400 MHz to 2480 MHz
  • Maximum receive refresh rate: 500Hz / F1000Hz
  • Minimum receiver refresh rate: 25Hz
  • Working voltage: 5v
  • Weight: 4.6g (Including two antenna)
  • Dimension: 22mm x 13mm x 4mm
  • Firmware Version: ExpressLRS v3.0 pre-installed
  • FW Target: RadioMaster RP3 Diversity 2400 RX
  • Bus interface: CRSF

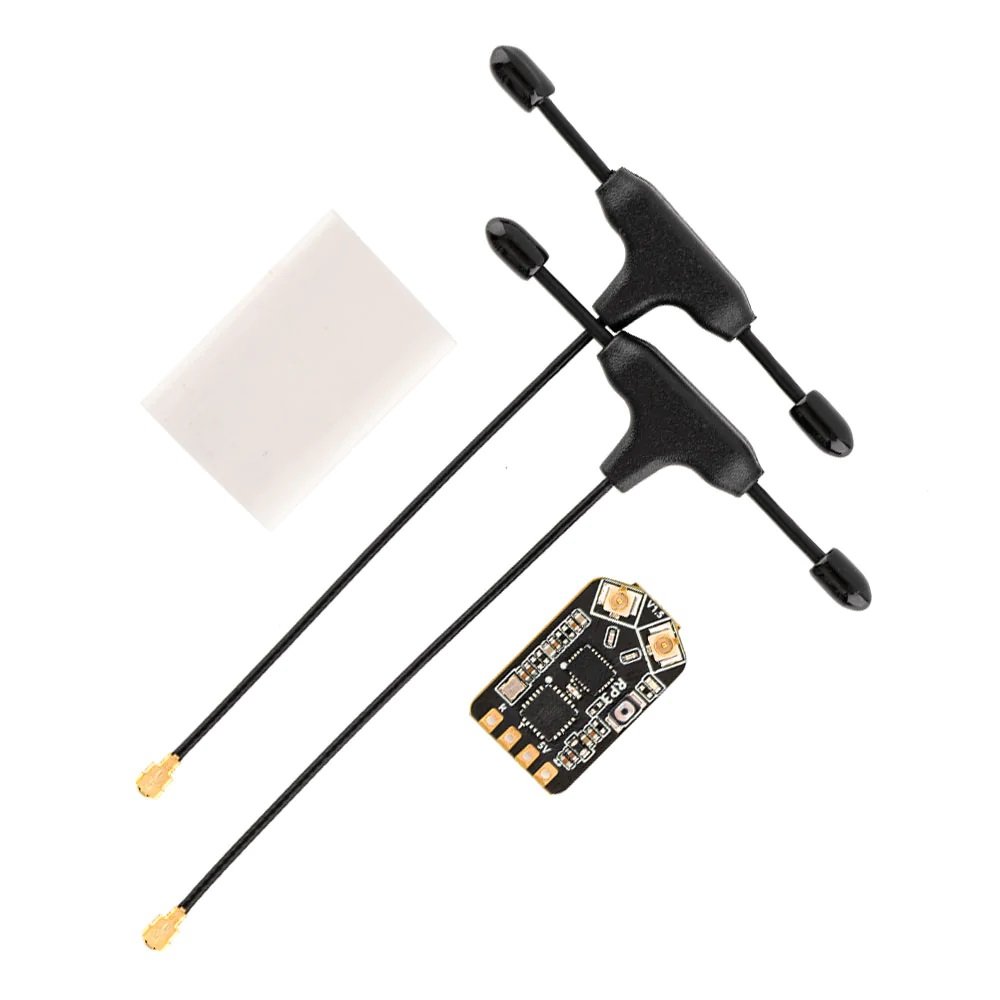

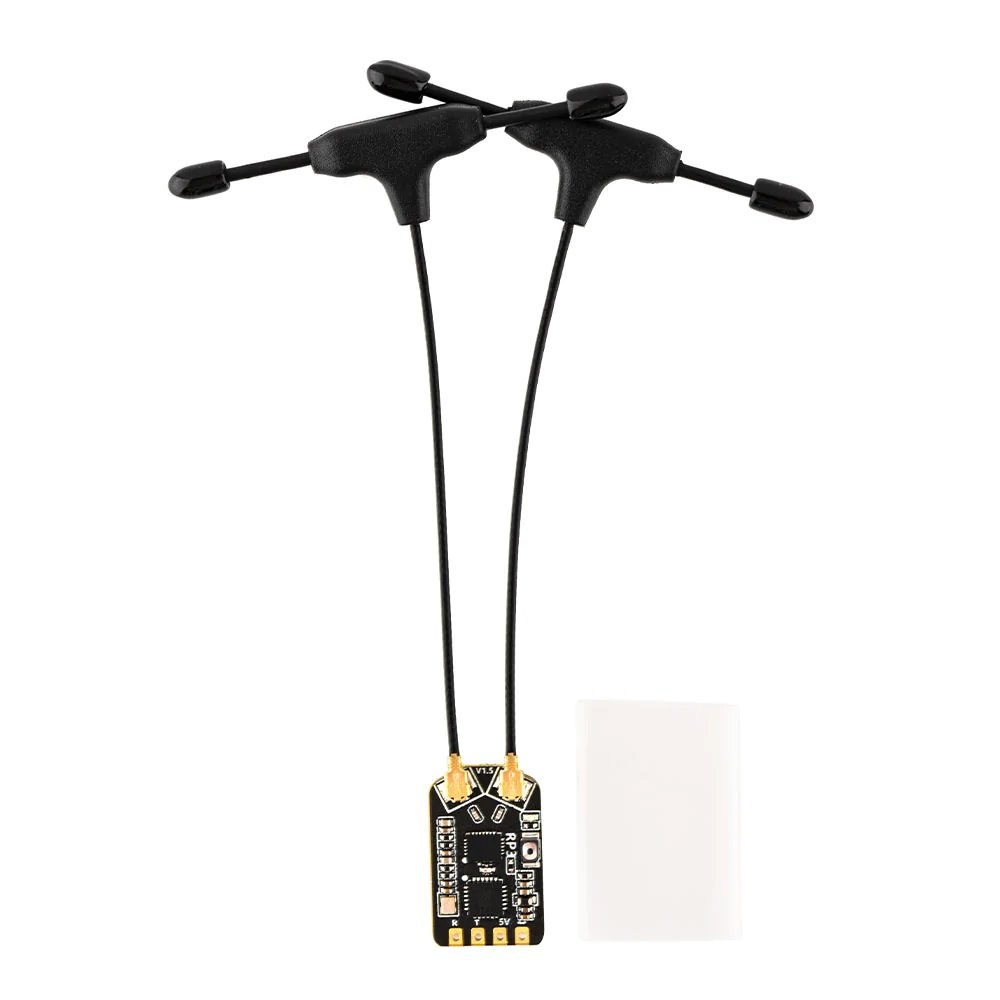

Includes

  • 1 x RP3 ExpressLRS 2.4GHz Nano Receiver
  • 2 x 65mm UFL 2.4GHz T Antenna
  • 1 x User Manual
