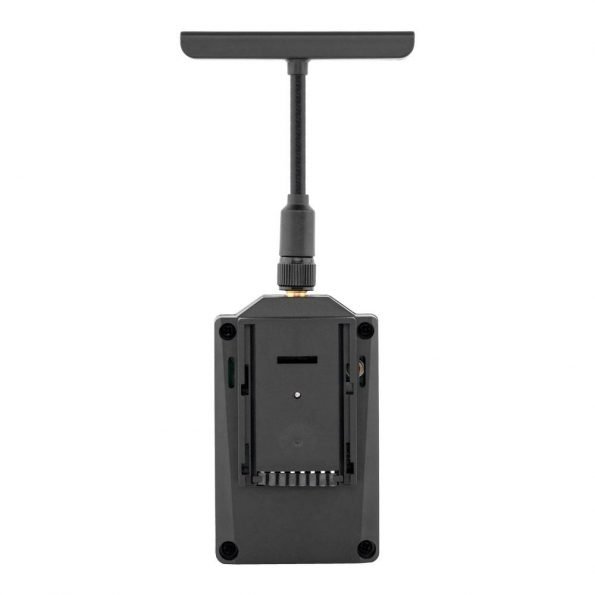

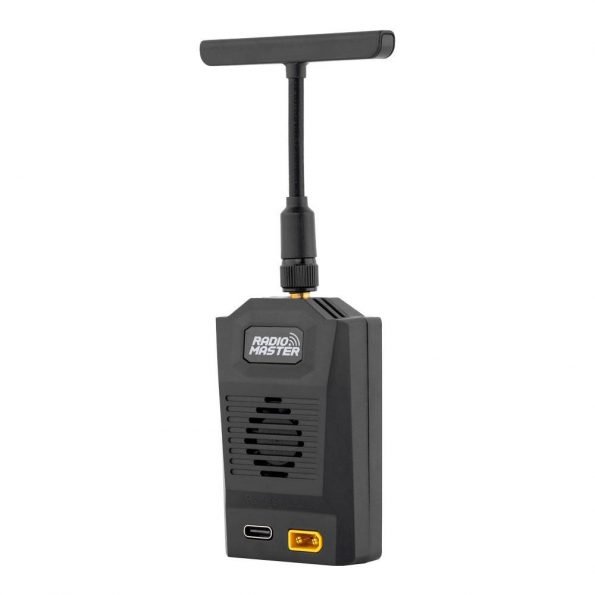

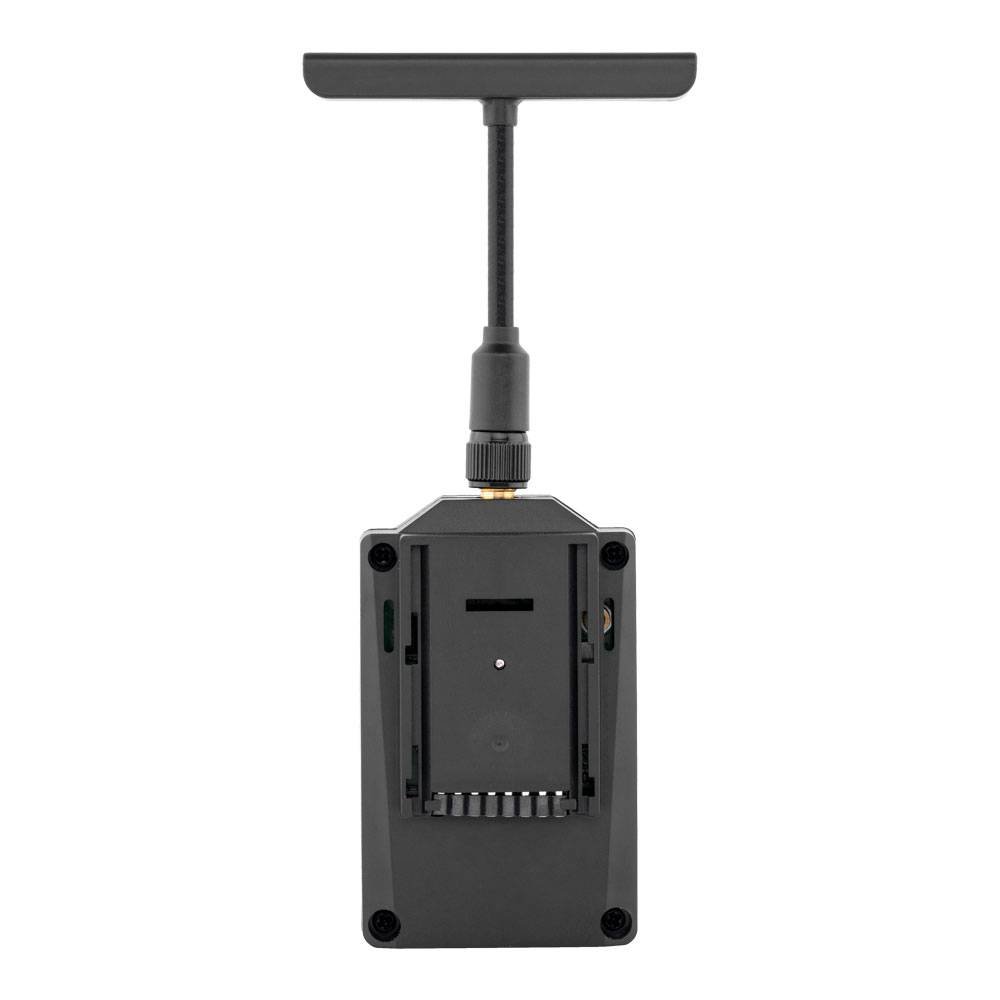

RadioMaster Ranger Nano ELRS Module

AVAILABILITY: In Stock (2 items)

$65.80

Brand: RadioMaster

2 in stock

  •  Delivery & Return

    Domestic Shipping

    • Estimate Domestic delivery options can be calculated at the Shopping Cart.
    • Home delivery orders are delivered on weekdays by Australia Post.
    • 4 - 7 business days for delivery to metro locations.
    • 7 - 10 business days to regional locations including WA, QLD and NT.
    • This delivery time frame is subject to changes in circumstances.
    • All orders dispatched within 2 to 3 business days.
    • See the Delivery Policy for details on shipping methods, costs and delivery times.

    International Shipping

    • Estimate International delivery options can be calculated at the Shopping Cart.
    • International Orders will be shipped via Australia Post.
    • Any customs or import duties and associate fees may impose on your destination country.

    Returns And Exchanges

    • Replacemnet warranty only cover for items that are Dead On Arrival (DOA).
    • 7 days return policy for all unopened items.
    • See conditions and procedure in our Returns Policy.
  •  Ask a Question

  Share

Discover the cutting-edge RadioMaster Ranger Nano 2.4GHz ELRS Module, designed for maximum efficiency and performance. Featuring a nano module bay adapter, high packet rates up to F-1000Hz, powerful 1 Watt output, and an advanced cooling system, this module is perfect for enhancing your remote control experience.

Features

  • Nano ExpresssLRS 2.4GHz Module
  • Nano Adapter for Zorro and More
  • High-Efficiency Cooling System
  • WiFi and Bluetooth Support
  • Max F-1000Hz Packet Rate
  • 1W Power Output

Ranger Nano

  • Item: Ranger Nano Module
  • Regulatory Domain: ISM2400
  • MCU: ESP32 (main), ESP8285 (aux, as ESP backpack)
  • RF chip: SX1281IMLTRT
  • Frequency Range: 2400 MHz - 2480 MHz
  • Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
  • Minimum receiver refresh rate: 25Hz
  • RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
  • Wifi Support: Yes
  • Bluetooth support: Yes
  • XT30 Power supply voltage: DC 6V - 16.8V
  • Weight: 48g (with antenna) / 39g (without antenna)

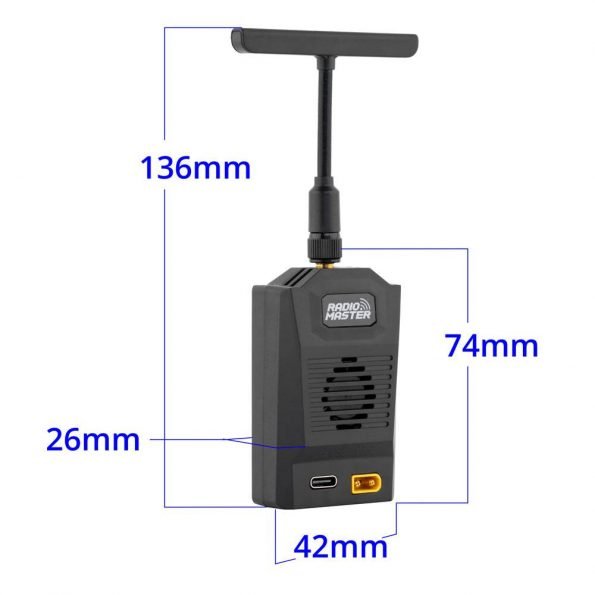

  • Dimension: 136 x 42 x 26mm (with T antenna) / 74 x 42 x 26mm (without antenna)

Includes

  • 1 x Ranger Nano Module
  • 1 x T Antenna
