Matek F405-HDTE Flight Controller
AVAILABILITY: In Stock (3 items)
$106.80
Brand: Matek Systems
3 in stock
The Matek F405-HDTE replaces the older F722-HD flight controller. The updated version offers just about any feature a builder needs. This versatile controller works with Betaflight, iNav, and Ardupilot, making it perfect for use in multi-rotors and planes of all kinds.
With support for 3-12S LiPo power and 12 PWM outputs, this board is uniquely positioned for some distinctive builds.
Features
- STM32F405 has 1MB flash which can run ArduPilot/INAV/BetaFlight
- InvenSense 3rd generation IMU ICM42688-P
- 9-60V (3~12S LiPo) wide input voltage and voltage sense. and a 9~16V BEC for DJI OSD or analog VTX
- 8 motors + 3 servos in INAV/BF multirotor mixer
- 2 x SH1.0_8pin connector for PNP with 2 x 4in1 ESC
- 1 x SH1.0_6pin connector for PNP with HD System(Caddx Vista & DJI Air Unit)
- USB pin breakout for connecting to external USB adapter

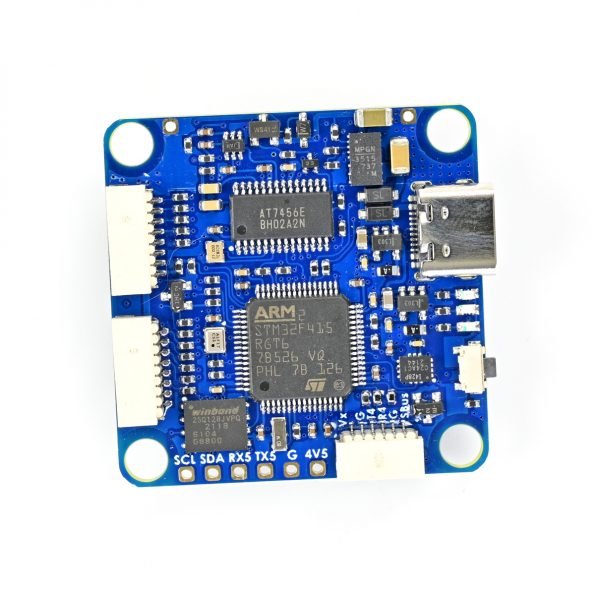

F405-HDTE
- MCU: STM32F405RGT6
- IMU: ICM42688-P
- OSD: AT7456E, DJI OSD
- Baro: SPL06-001 (I2C)
- Blackbox: 16M-byte Flash memory
- 6 x UARTs, 1 x Softserial_Tx option
- 12 x PWM outputs (8x Dshot)
- 1 x I2C
- 4 x ADC (VBAT, Current, RSSI, Airspeed)
- 2 x PINIO
- 2 x SH1.0_8pin connector for 4in1 ESC
- 1 x SH1.0_6pin connector for HD System(Caddx Vista & Air Unit)
- 3 x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
- 9 ~ 16V (Vxs) output ON/OFF switchable
- Dual analog camera signal switchable
- Input: 9 ~ 60V (3 ~ 12S LiPo)
- BEC: 5V 1.5A
- BEC: Vx, 9~16V/1~2A (3S IN/9V 2A, 4S IN/12V 2A, 6S IN/16V 2A, 8S IN/16V 1.5A, 12S IN/16V 1A)
- Battery Voltage Sensor: 1K:20K (INAV scale 2100, BF scale 210)
- No Current Sensor built-in, supports external current sensor of PDB/4in1
- ArduPilot: MatekF405-TE
- INAV: MATEKF405TE
- BetaFlight: MATEKF405TE
- Mounting: 30.5 x 30.5mm, φ4mm with Grommets F3mm
- Dimensions: 36 x 36 x 5 mm
- Weight: 7g

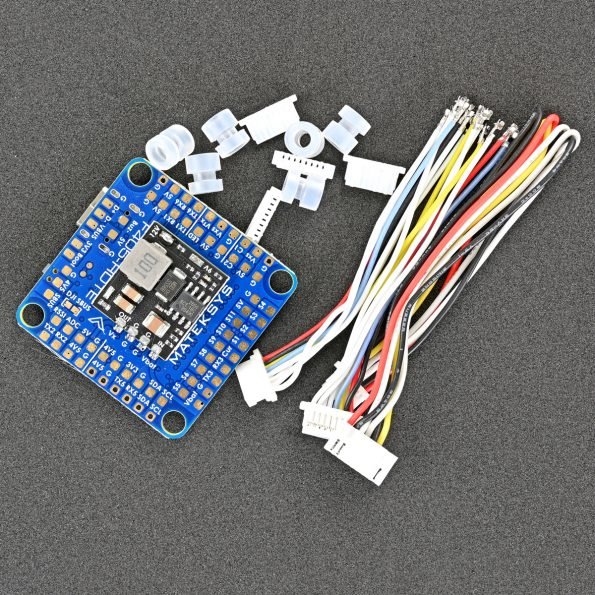

- 1 x FC F405-HDTE
- 6 x Silicon grommets M4 to M3
- 1 x SH1.0_8pin cable 5cm, 2 x SH1.0_8pin connectors
- 1x SH1.0_6pin to GH1.25_8pin cable 8cm for HD System(Caddx Vista & Air Unit)
