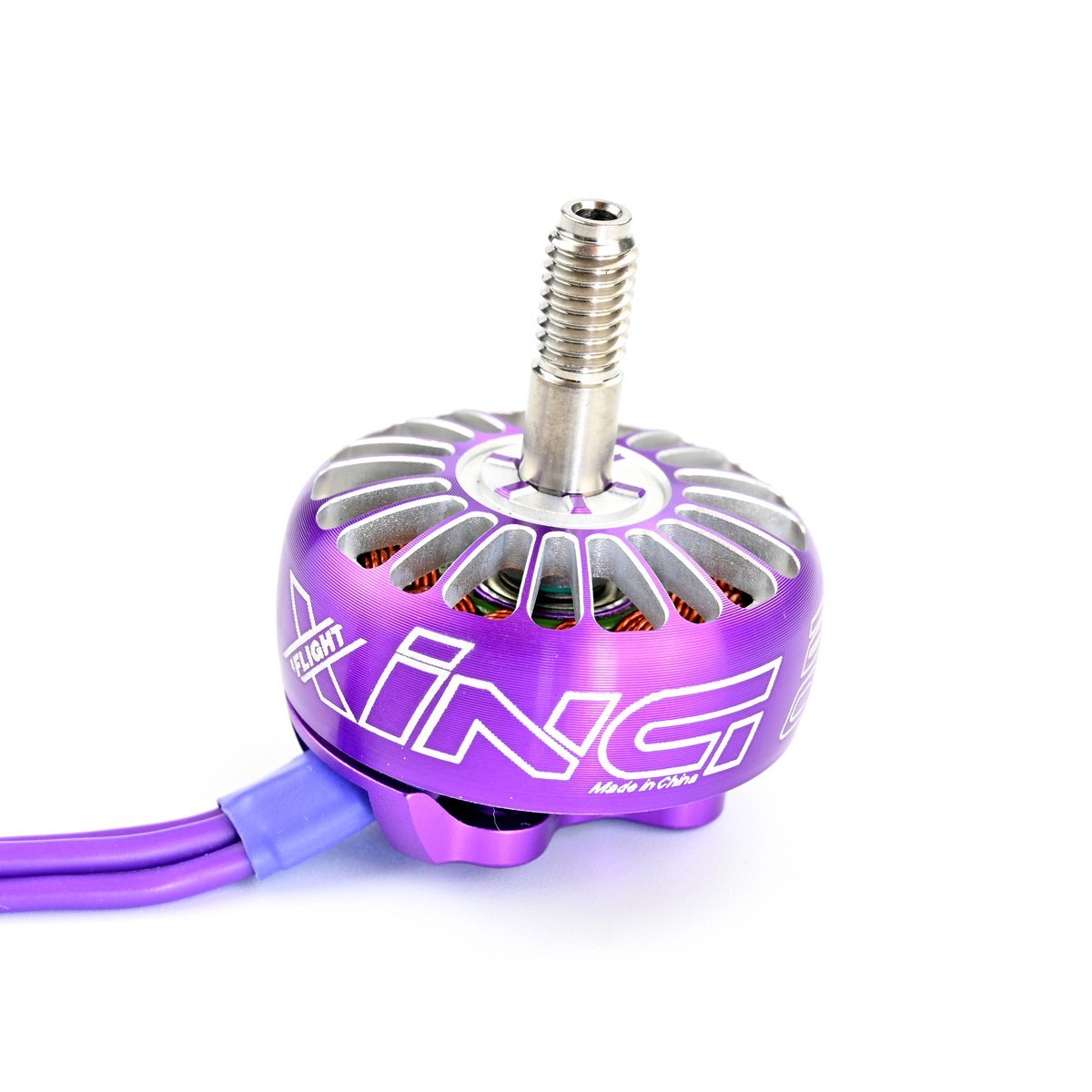

iFlight Xing 2306 – 1700KV Motor

The iFlight XING 2306 1700KV is part of a series designed and named by FPV pilot & specialist Patrick Xing. Combining IFlight’s high-quality motor production technology with Patrick Xing’s technical expertise, a top-of-the-line motor has been produced.

iFlight XING provides the most incredible power and thrust in the lightest weight. iFlight continues the tradition of making the best and most suitable products to offer different size and KV value to meet different pilots’ needs. It means that the iFlight XING series motor can be pushed to the limit. The sturdy structure and high-quality materials make iFlight XING perform like a beast.

There’s a non-slip design on the contact surface of the iFlight XING motor and propellers to increase the friction and to improve durability; Multi-heat dissipation hole design helps to pull heat away continuously.

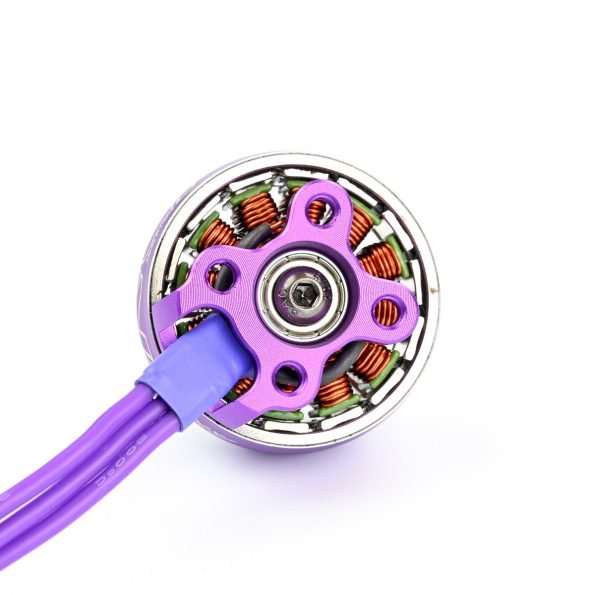

The standard M3 16mm*16mm mounting pattern at the bottom adapts to all frames on market. A motor cable length of 160mm can meet different requirements whether connecting single or 4 in 1 ESCs. Each motor has been dynamically balanced, and all of them have passed the highest standard iFlight manufacturing and assembling procedure.

Features

• Unibell design
• Elliptical body, high-strength Titanium alloy shaft
• Large heat dissipation holes design (15℃ reduced compared to same range motor)
• Crush resistant damping bearing, eliminate vibration effectively
• 50% – 80% optimal throttle output, best efficiency
• 160mm cable length for different frames and setups
• CNC high-precision machining 7075 aluminum Bell and Base
• 220℃ Pacific Heat-Resistant Copper Wire, Solid Wire Winding
• Electromagnetically matched magnets and stator
• Japanese Kawasaki 1200 Iron Core
• N52H High-temperature magnets
• Motor wire protected
• Hex bolt shaft set screw
• Dynamically balanced
• 30.6g with short wire

((!)) This is for a set of four motors. Individual sell will not be considered.
