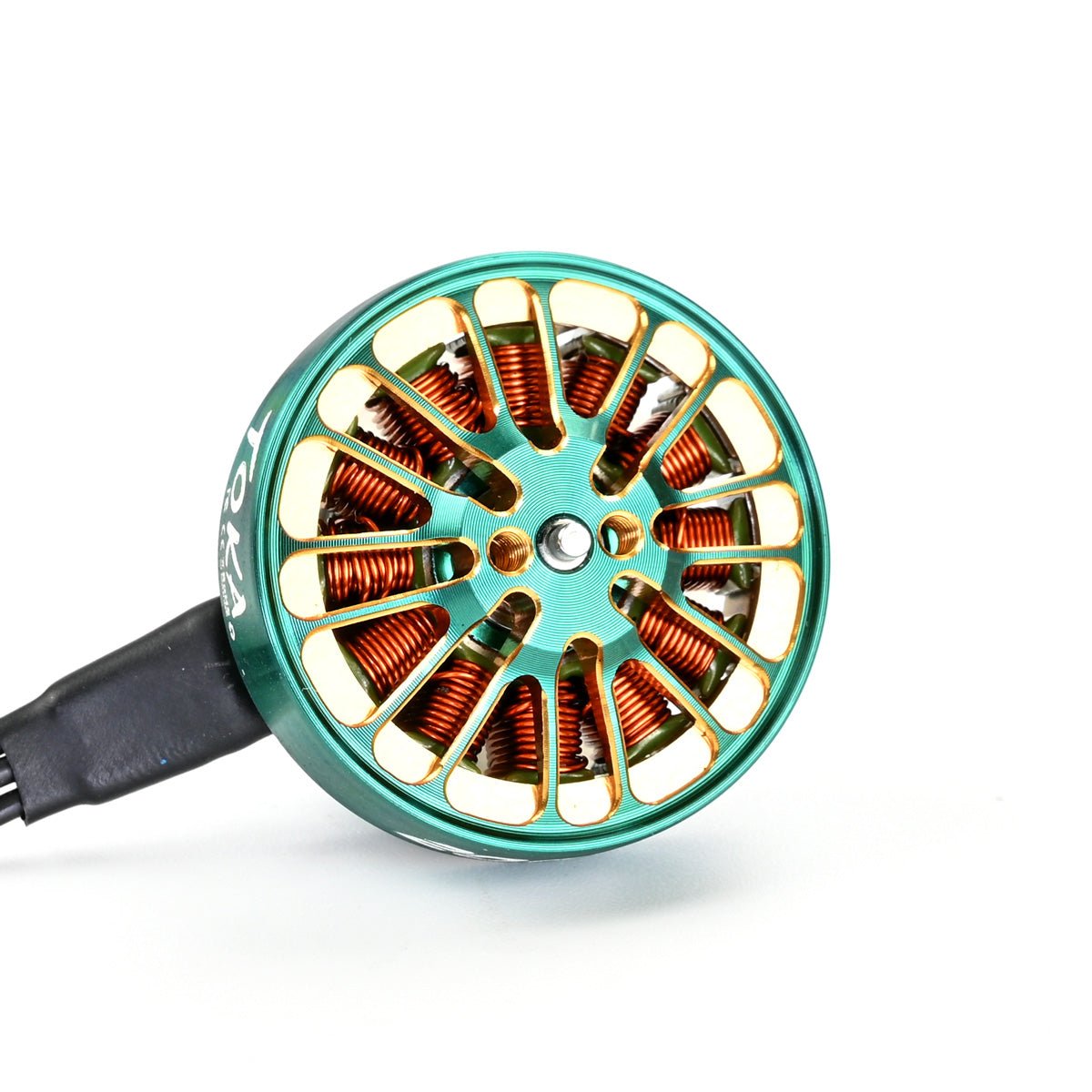

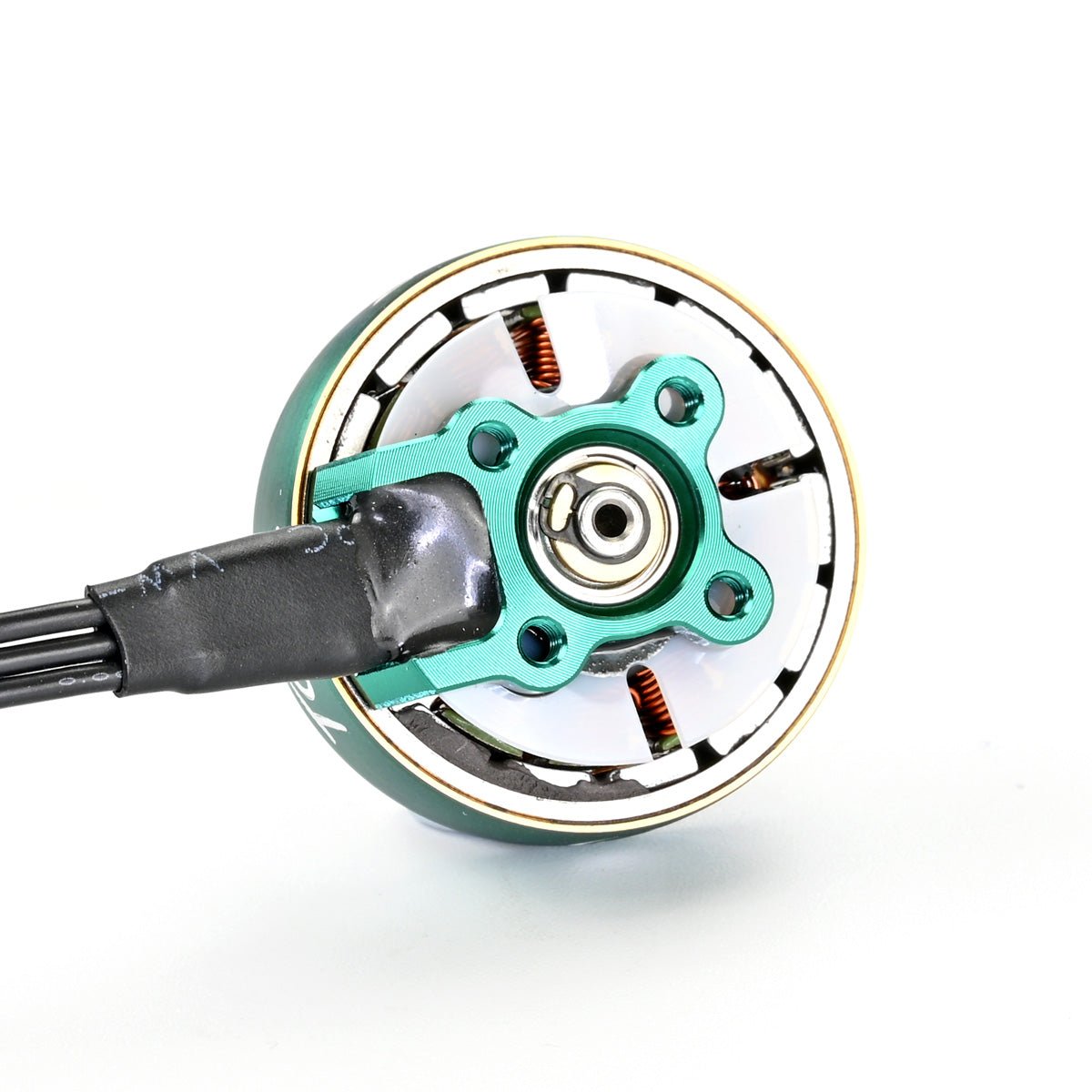

Diatone Mamba Toka 2004 – 1700KV Motor
AVAILABILITY: In Stock (5 items)
$26.60
Brand: Diatone
5 in stock
- Delivery & Return
Domestic Shipping
- Estimate Domestic delivery options can be calculated at the Shopping Cart.
- Home delivery orders are delivered on weekdays by Australia Post.
- 4 - 7 business days for delivery to metro locations.
- 7 - 10 business days to regional locations including WA, QLD and NT.
- This delivery time frame is subject to changes in circumstances.
- All orders dispatched within 2 to 3 business days.
- See the Delivery Policy for details on shipping methods, costs and delivery times.
International Shipping
- Estimate International delivery options can be calculated at the Shopping Cart.
- International Orders will be shipped via Australia Post.
- Any customs or import duties and associate fees may impose on your destination country.
Returns And Exchanges
- Replacemnet warranty only cover for items that are Dead On Arrival (DOA).
- 7 days return policy for all unopened items.
- See conditions and procedure in our Returns Policy.
- Ask a Question
The Mamba Toka 2004 Motor is part of a new series of motors by Diatone that is best suited for CineWhoops, like the Diatone MX-C Taycan or any 3″-4″ builds!
MAMBA TOKA 2004 1700KV Racing Motor
- Overall Dimension: φ26.2×15.3mm
- Prop mounting shaft diameter: 1.5mm
- Installation hole position: 12×12mm, M2
- Prop: 3.5inch ~ 5inch
- Bearing: 7*3*3
- Shaft Diameter: 3.0mm
- Lead Wire Size: 24AWG × 150mm
- Configuration: 12N14P
- Magnet Wire: 240℃ Enameled Wire
- Stator Diamter: 20mm
- Stator Height: 4mm
- Rated Voltage: 4S ~ 6S (16.8V ~ 25.2V)
- Peak Current: 17.52A
- ldle Current: 10V/0.3A ~ 0.8A
- Maximum Power: 418.1W
- Internal Resistance: 210mΩ
- Weight: 16.3g
