Diatone Mamba MK4 H743 V2 Flight Controller

AVAILABILITY: In Stock (1 items)

$114.40

Brand: Diatone

1 in stock

  •  Delivery & Return

    Domestic Shipping

    • Estimate Domestic delivery options can be calculated at the Shopping Cart.
    • Home delivery orders are delivered on weekdays by Australia Post.
    • 4 - 7 business days for delivery to metro locations.
    • 7 - 10 business days to regional locations including WA, QLD and NT.
    • This delivery time frame is subject to changes in circumstances.
    • All orders dispatched within 2 to 3 business days.
    • See the Delivery Policy for details on shipping methods, costs and delivery times.

    International Shipping

    • Estimate International delivery options can be calculated at the Shopping Cart.
    • International Orders will be shipped via Australia Post.
    • Any customs or import duties and associate fees may impose on your destination country.

    Returns And Exchanges

    • Replacemnet warranty only cover for items that are Dead On Arrival (DOA).
    • 7 days return policy for all unopened items.
    • See conditions and procedure in our Returns Policy.
  •  Ask a Question

  Share

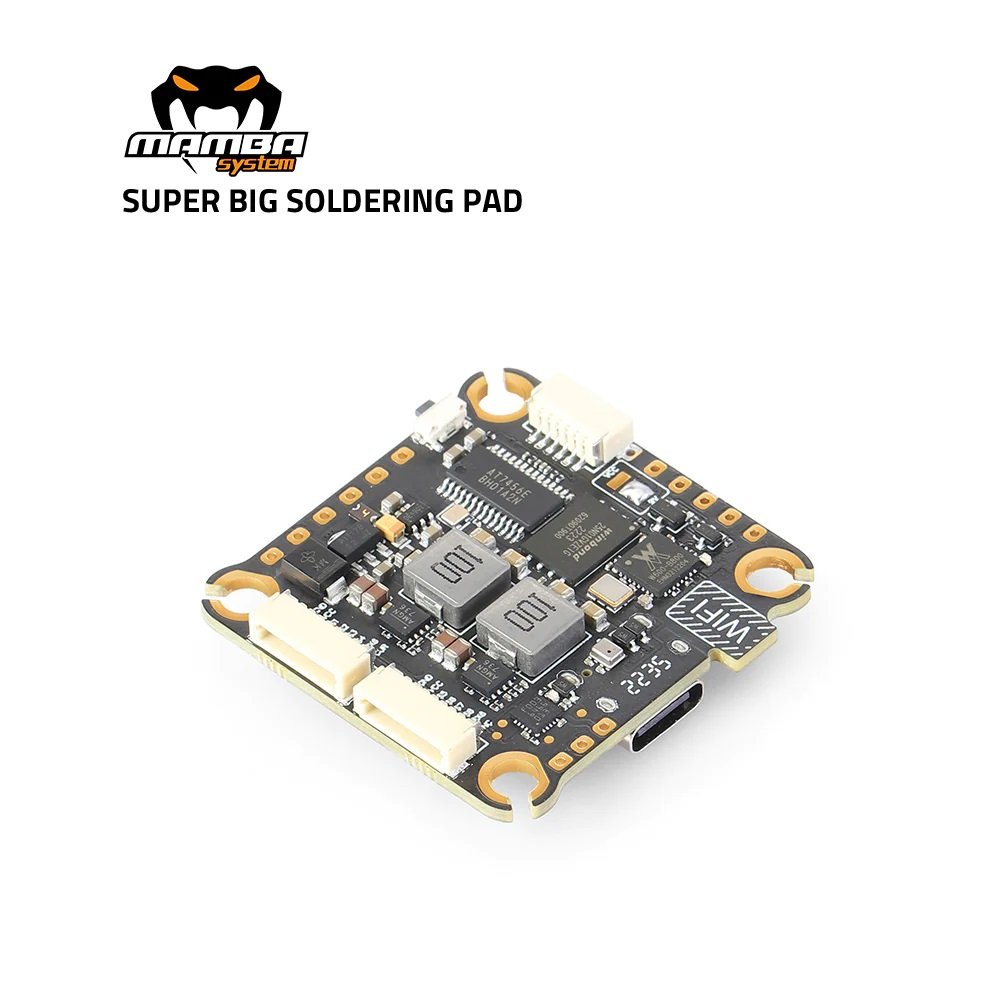

This Mamba MK4 H743 V2 flight controller from Diatone is a full featured flight controller with the latest H7 processor and dual ICM gyros. It is equipped with a Barometer, OSD Chip, 128M of Blackbox memory, 8 full Uarts, 8 ESC motor outputs, a connector to making connecting your video transmitter of choice a breeze, and onboard wifi allowing you to connect to the Speedybee app for wireless setup.

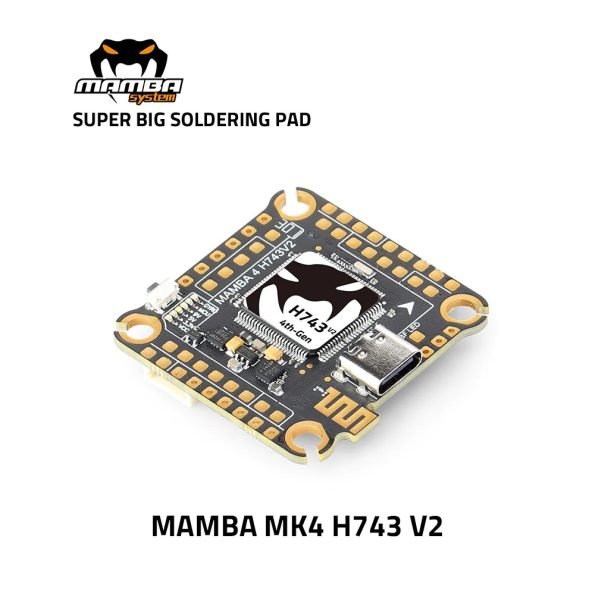

Mamba MK4 H743 V2

  • MCU: 480MHz STM32H743
  • GYRO: DUAL ICM-42688-P
  • Target: MAMBA H743_2022B
  • OSD: Yes
  • Blackbox: 128M Flash Memory
  • Barometer: SPL06
  • Uarts: 8Set
  • I2C: Yes
  • F.Port: Yes
  • RSSI: No
  • Buzzer Pad: Yes
  • CURR Pad: Yes
  • ESC Signal: 8 Set
  • ESC Soft: Dshot300/600/1200
  • ESC Telemetry: Yes
  • Power Led: Yes
  • LED Controller:BF LED/MB LED
  • AIR UNIT Port: Yes
  • WIFI: SpeedyBee APP
  • VTX Switch: Yes
  • Receiver Protection: Yes
  • TVS Protection: Yes
  • BEC:3.3V 0.5A& 5V 3A& 9V 3A
  • Input: 3~6S Lipo (12.6~25.2V)
  • Mounting size: 30.5mm/M3

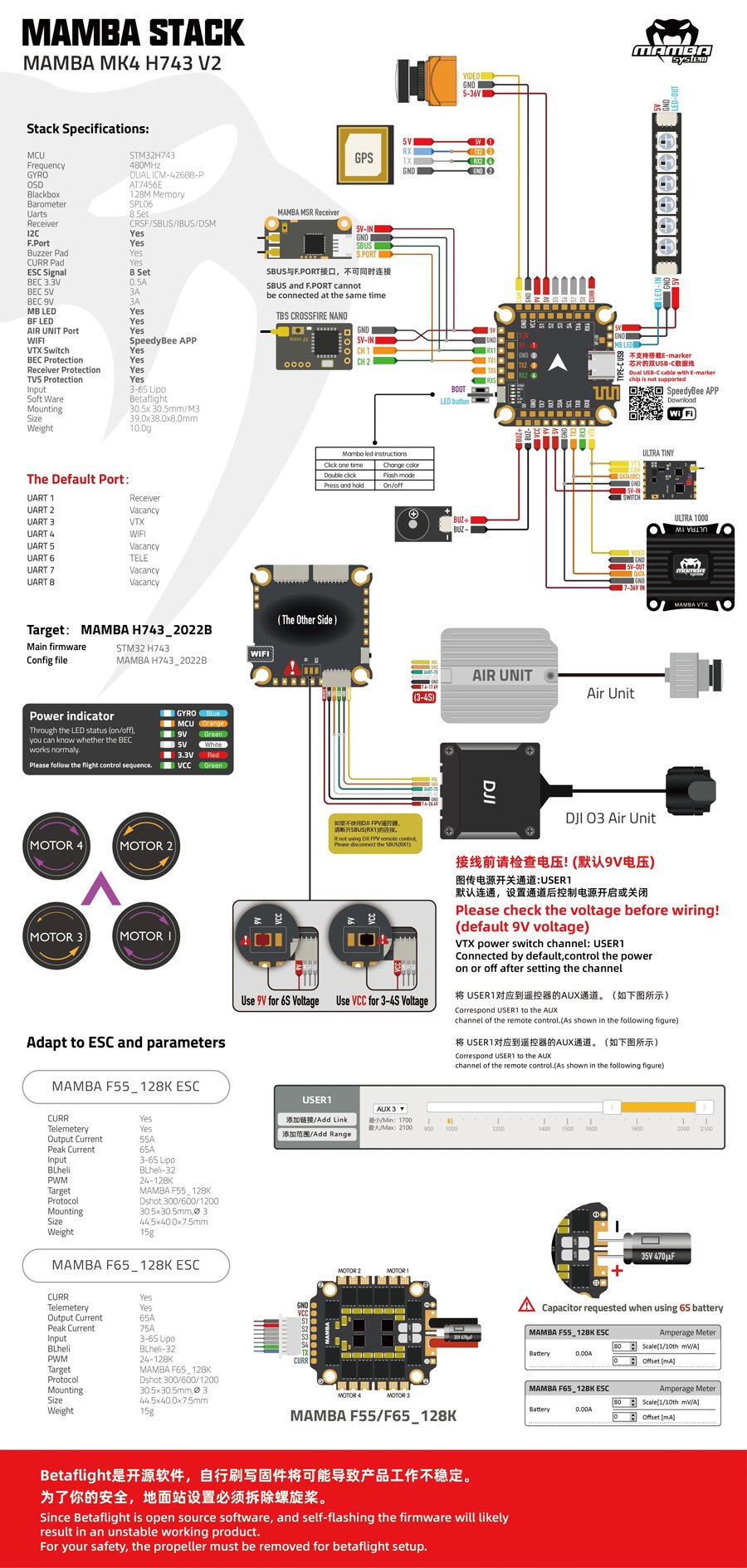

Mamba Mk4 H743 V2 Wiring Diagram
