The AOS 5 EVO Frame Kit is a lightweight drone designed with low-vibration technology. This drone features state-of-the-art electronics and topology optimization. The AOS 5 EVO allows you to run less filtering, with less associated delay, and increase your PID gains far higher than any other frame in its weight class. Get ready for the most responsive 5″ quad you have ever flown!
Features
- Approx. 120g with all hardware
- Designed for up to 5.1 inch props
- 220mm wheelbase
- 6 mm Arms
- 30.5×30.5mm, 25.5×25.5 or 20×20 mm stack mountings in the front, centre and rear.
- Fits the DJI O3 Air Unit, Caddx Vista or HDZero Freestyle VTX perfectly
- Fits both 20mm (DJI and O3 camera) and 19mm (Micro sized) cameras
- Motor mounting 16×16 up to 19×19 (2306, 2207 recommended)
- Standoffs, frame and screws included
Note: This is a frame kit only. All other parts are not included. Assembly required.

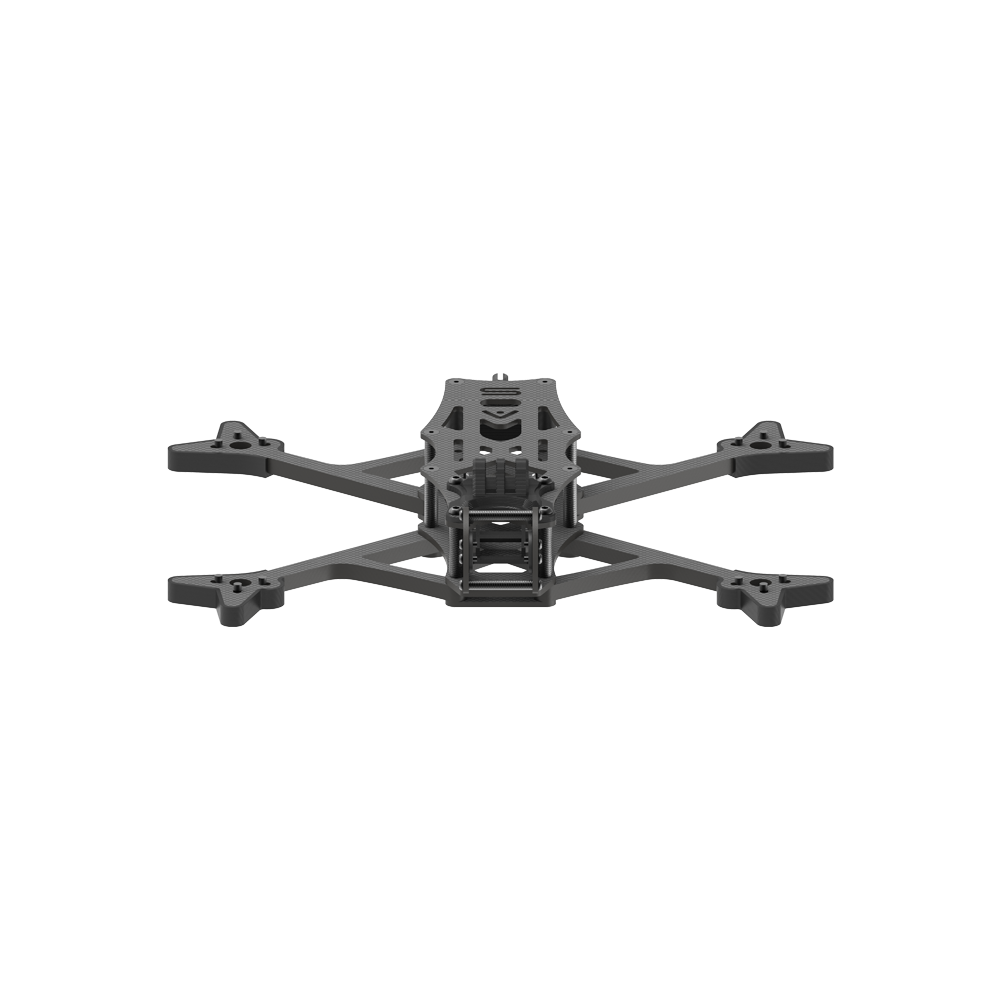

AOS 5 EVO Frame
- Product Name: AOS 5Â EVO Frame Kit
- Frame wheelbase: 220mm
- Frame Dimension: L175*W135*H32.5 mm
- Arm Thickness: 6mm
- Top Plate Thickness: 2mm
- Bottom Plate Thickness: 2.5mm
- Upper Plate Thickness: 2mm
- Motor Mounting: 16x16mm
- VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm
Includes
- 1 x AOS 5 EVO Frame Kit
- 1 x TPU Parts
- 4 x Motor Wire Shield Tube
- 1 x Screw Bag
- 2 x Battery Strap
